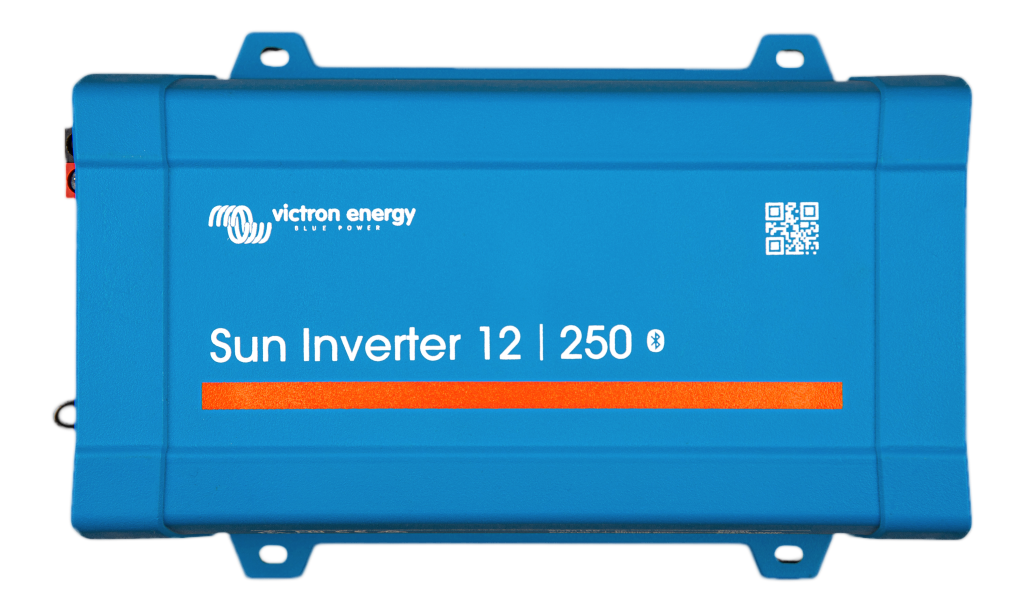

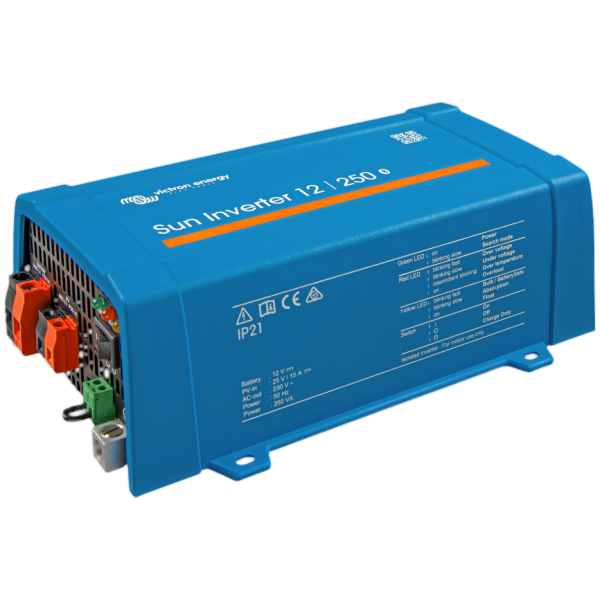

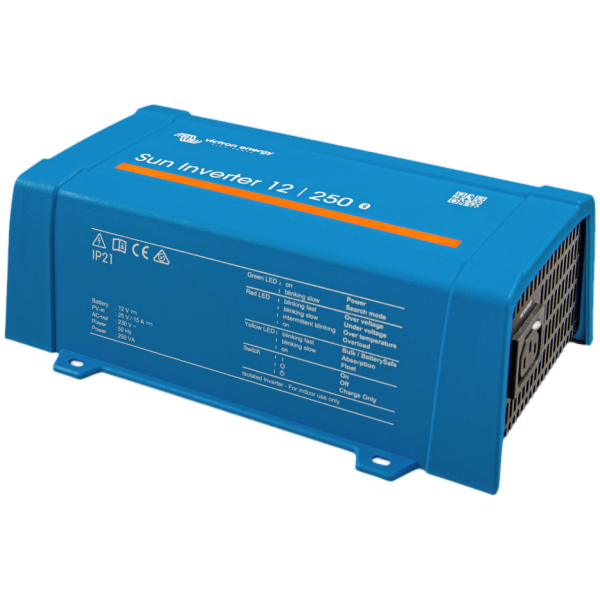

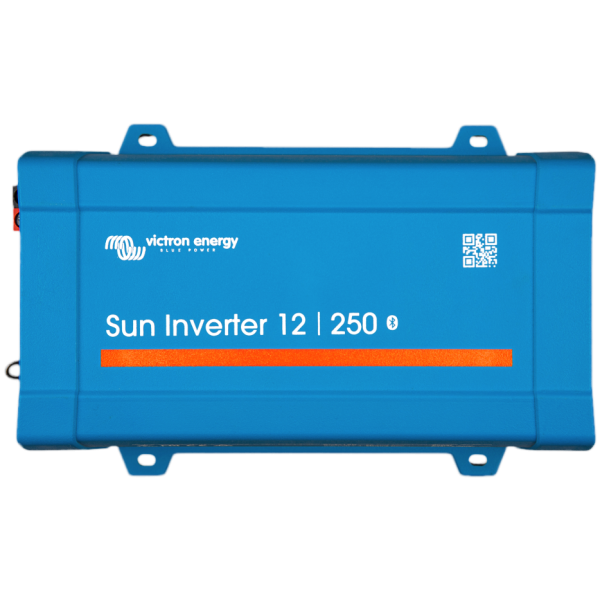

Sun Inverter

208,80

Artikelnummer: n. v. Kategorie: Schlagwort:

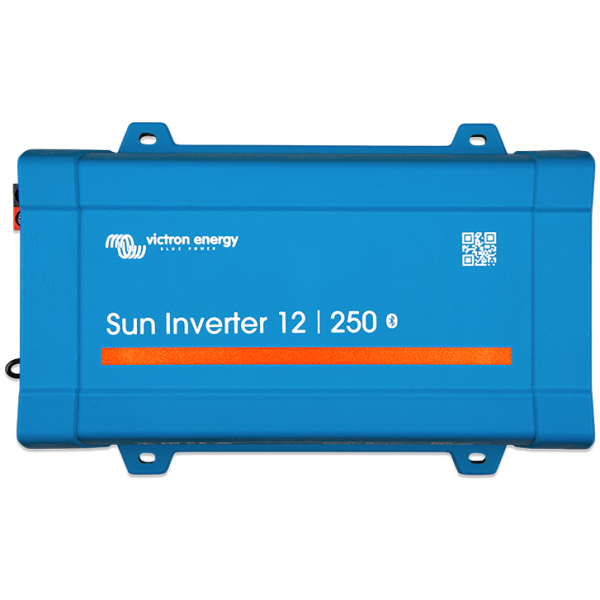

Der Sun-Wechselrichter kombiniert einen Sinus-Wechselrichter und ein PWM-Solarladegerät in einem Gehäuse und ist mit einem Minimum an Verkabelung einfach zu installieren.

Mit dem Wechselrichter können Sie Haushaltsgeräte, die 230 VAC benötigen, über Freizeit- oder Autobatterien mit einer Spannung von 12 V oder 24 V betreiben.

Mit dem Solarladegerät wird sichergestellt, dass die Batterien durch die von Ihren Solarpaneele gewonnene Energie geladen werden. Der Ladealgorithmus ist programmierbar.

Die Parameter des Wechselrichters und des Solarladegeräts können über Bluetooth mit der VictronConnect App ausgelesen werden. Darüber hinaus verfügt der Wechselrichter über einen VE.Direct-Port zum Anschluss an ein GX-Gerät oder GlobalLink 520 zur Systemüberwachung.



Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a pre-set value (min load: 15 W). Once in standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a pre-set level, the inverter will remain on.

PWM solar charger

The solar charger ensures that the batteries are charged by energy harvested from your solar panels. The charge algorithm is programmable.

Remote on/off

The Phoenix Inverter Control VE.Direct Remote panel (not included) can be used to turn the inverter on or off remotely. Alternatively, a remote on/off switch can be connected to a two-pole connector or between battery plus and the left-hand contact of the two-pole connector.

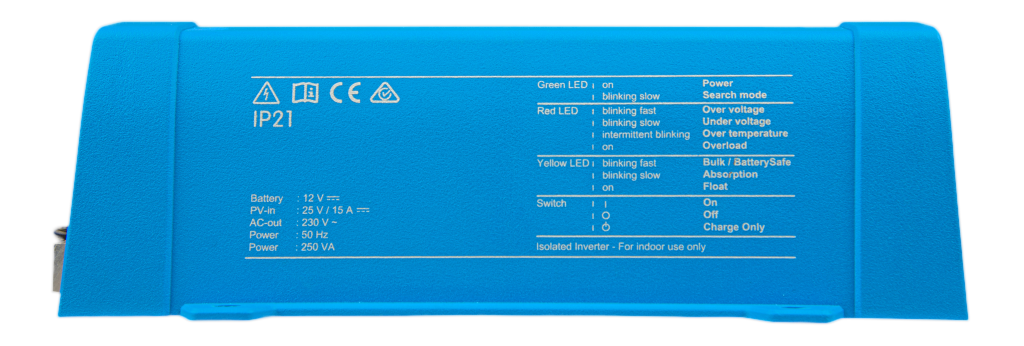

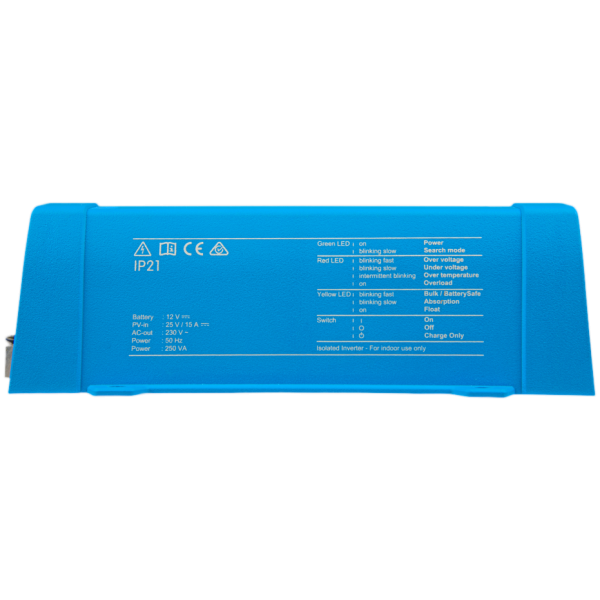

LED diagnosis

Please see the manual for a description.

Bluetooth

The inverter and solar charger parameters can be read, monitored, and configured via Bluetooth using the VictronConnect app.

VE.Direct communication port

The VE.Direct Port can be used for connection to a GX device, GlobalLink 520 for monitoring via the VRM portal or for connection to a computer for monitoring or configuring using the VictronConnect app.

Monitoring via the VictronConnect app or GX device:

  • Inverter in- and output voltage and % load
  • Solar power, voltage, and current
  • Operational state and alarms

Fully configurable via the VictronConnect app:

  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off: load dependent cut-off level
  • Output voltage 210 – 245 V and Frequency 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level
  • Battery charge current, algorithm, and voltages
  • Battery charge temperature compensation or low temperature cut of level

To transfer the load to another AC source: the automatic transfer switch

For our low-power inverters, we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

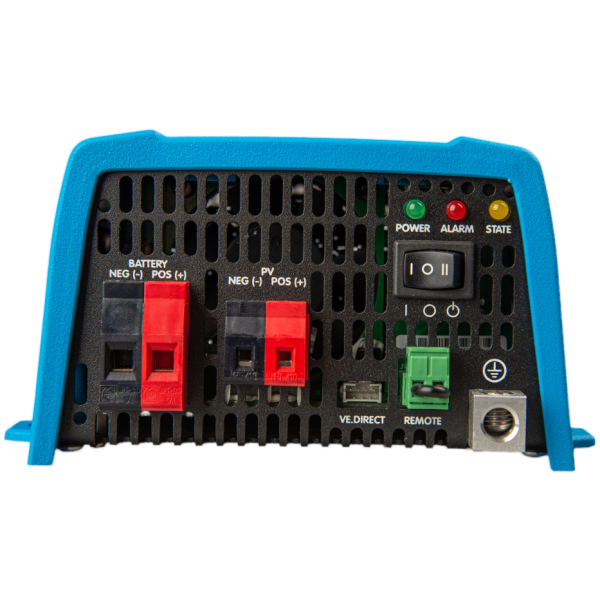

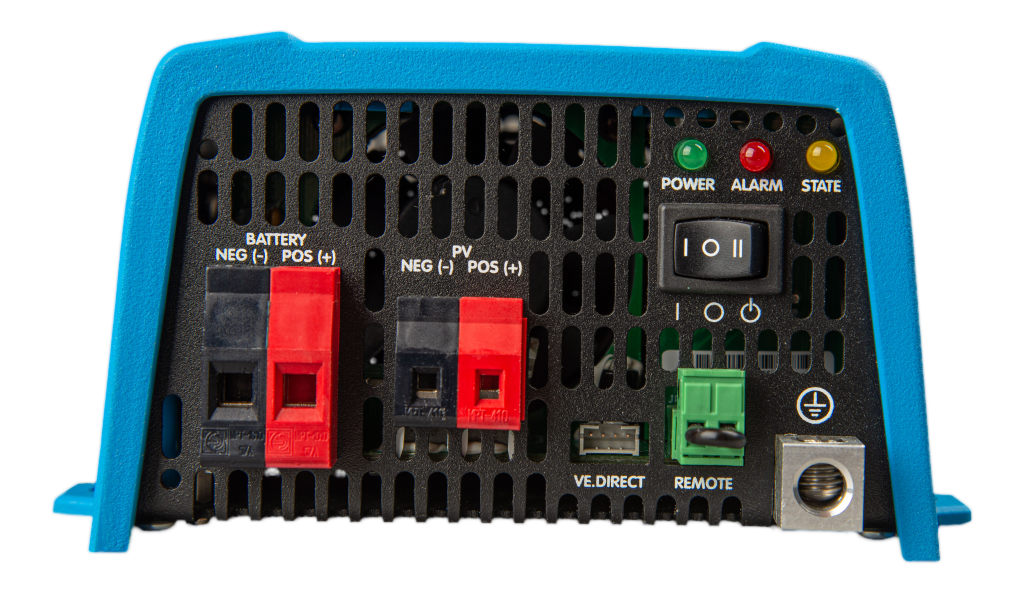

DC and PV connections with screw terminals

No special cable terminals or tools are needed for installation.

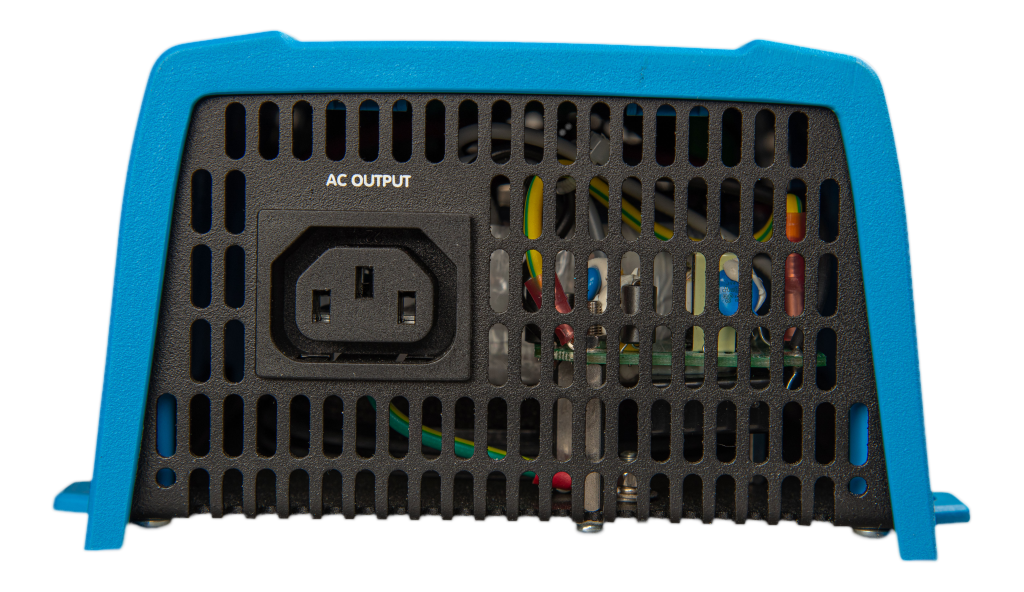

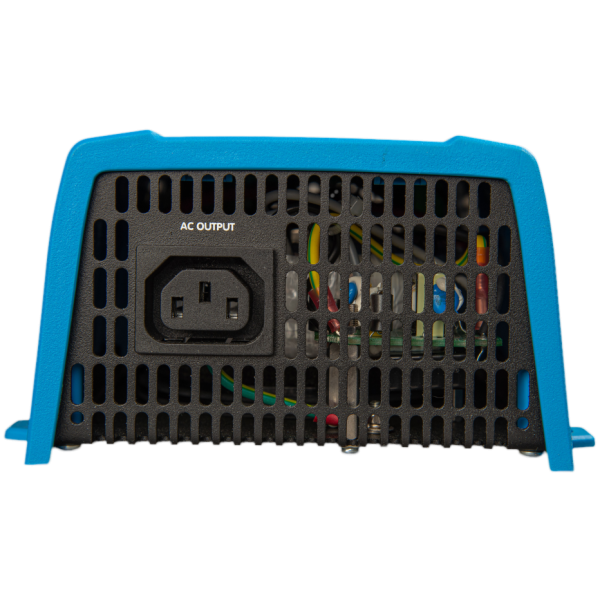

Available with an IEC-320 socket

An IEC-320 male plug is included.

Gewichtn.v.
Abmessungenn.v.
Batteriespannungn.v.
PV-Spannungn.v.
Ladestromn.v.
Leistungn.v.
AC-Eingangsspannungn.v.
AC-Frequenzn.v.
Transferschaltern.v.
Bluetoothn.v.
Schutzklassen.v.
Kommunikationn.v.
DatenblätterSUN Inverter
BedienungsanleitungPre-RMA bench test instructions (PDF)
SUN Inverter (PDF)
Sun Inverter (HTML5)
VictronConnect Manual (HTML5)
VictronConnect Manual (PDF)
Gehäuse AbmessungenSUN Inverter
SUN Inverter (3D)
SUN Inverter (stp)
ZertifikateISO9001 certificate
Technische DatenPre-RMA bench test instructions (PDF)
