VE.Direct to VE.CAN interface

UVP 252,00  214,20

VE.Direct to VE.CAN interface

SKU: N/A Category:

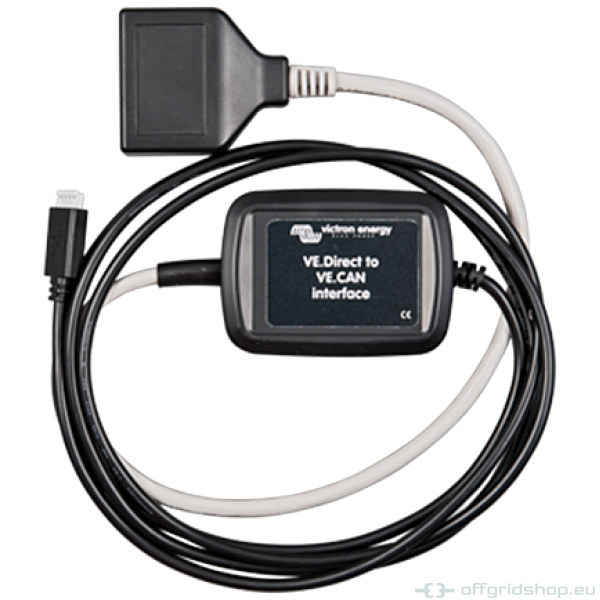

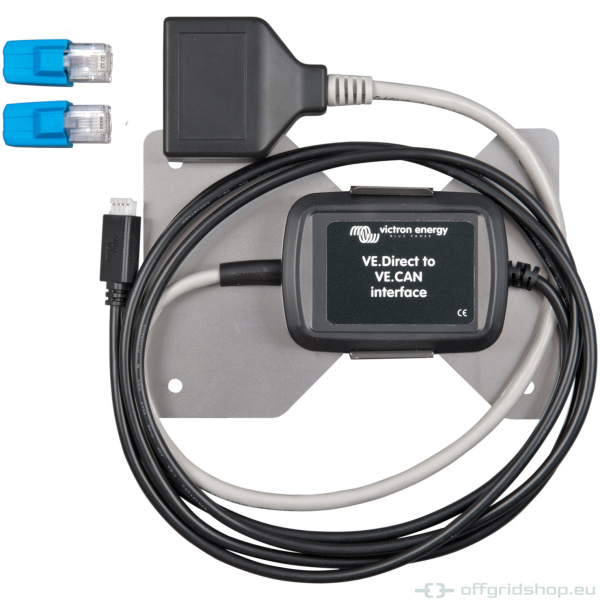

The VE.Direct to VE.CAN interface cable can be used to make BMV-700 information available on a VE.Can network. Where it can be read by a Color Control GX for example.


• The interface cable does not work with other VE.Direct products, such as Solar Chargers, Inverters and the BMV-712 Smart.
• When used in combination with a BMV-702 there is limited functionality with regards to the AUX function in the BMV: When used to measure starter battery voltage, that voltage will be transmitted to VE.Can. But when used to measure temperature and or mid-voltage, that data will not be transmitted on the VE.Can network.

DEPRECATED: this interface cable is deprecated. Use a GX Device instead, it provides more and better functionality. More detailed information in this NMEA2000 chapter. And make sure to read our Marine MFD integration guide as well.

Battery voltagen.v.
PV voltagen.v.
Charge currentn.v.
AC input voltagen.v.
AC frequencyn.v.
Transfer switchn.v.
Ingress protectionn.v.
ManualBMV to NMEA 2000
CertificateDeclaration of Conformity - Interfaces
ISO9001 certificate
Technical informationModbus-TCP register list
