Smart BMS CL 12/100

ab UVP 25,20  ab 21,42

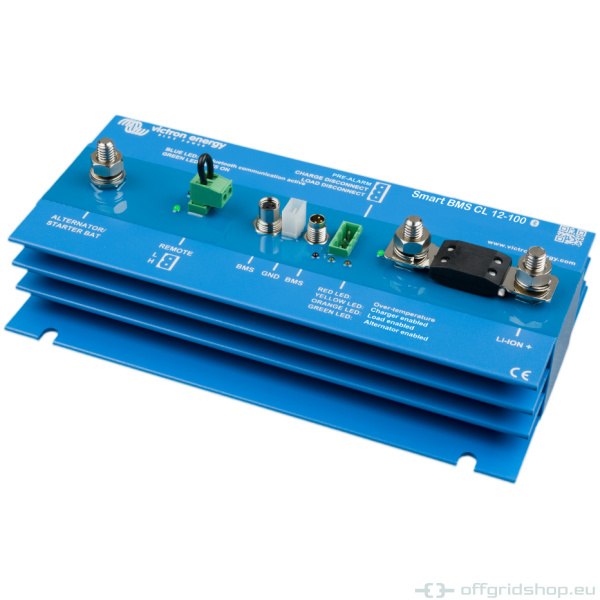

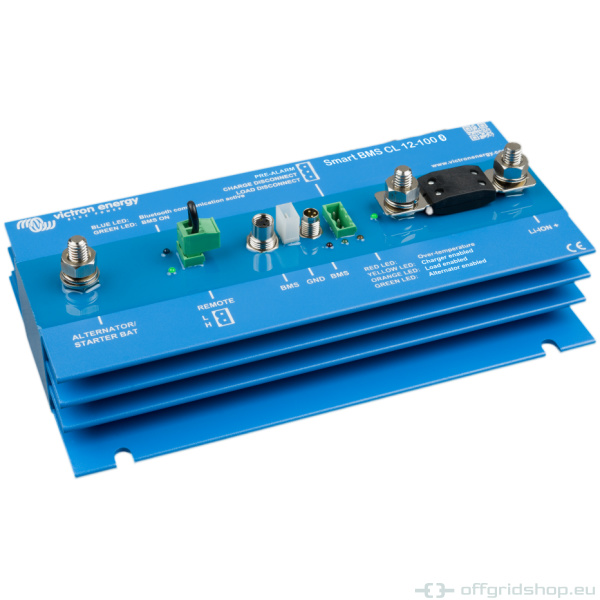

Smart BMS CL 12/100

SKU: N/A Categories: ,

The Smart BMS CL 12/100 is a Battery Management system for Victron lithium-iron-phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator.

The BMS CL 12/100 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources or DC loads in case of low battery voltage, high battery voltage or over temperature.

The dedicated alternator input provides current limiting and one-way traffic from the alternator into the battery, this so any size alternator (and start battery) can be safely connected to the Smart Lithium battery or batteries.

The BMS is also equipped with a remote on/off connector, to turn the BMS (and the system) off via a remote switch, and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.

Weightn.v.
Dimensionsn.v.
Battery voltagen.v.
PV voltagen.v.
Charge currentn.v.
Powern.v.
AC input voltagen.v.
AC frequencyn.v.
Transfer switchn.v.
Bluetoothn.v.
Ingress protectionn.v.
Communicationn.v.
DatasheetSmart BMS CL 12V 100A
ManualSmart BMS CL 12-100 (HTML5)
Smart BMS CL 12-100 (PDF)
VideoWebinar I: purchasing Victron, Alternator Charging with Lithium Batteries and VictronConnect.
Enclosure dimensionSmart BMS CL 12/100
Smart BMS CL 12/100 (3D)
Smart BMS CL 12/100 (stp)
System schematicUS-VAN Drawing Smart BMS CL12/100 MultiPlus 3KW DMC 400Ah Li VEBus Smart Dongle & Shunt SBP 100A MPPT 100/50
CertificateDeclaration of Conformity - Battery Management Systems
ISO9001 certificate
