Lynx Smart BMS

UVP 1.222,80  1.039,38

Versand in 1-3 Werktagen - auf Lager

Lynx Smart BMS

UVP 1.222,80  1.039,38

SKU: LYN034160200 Category:

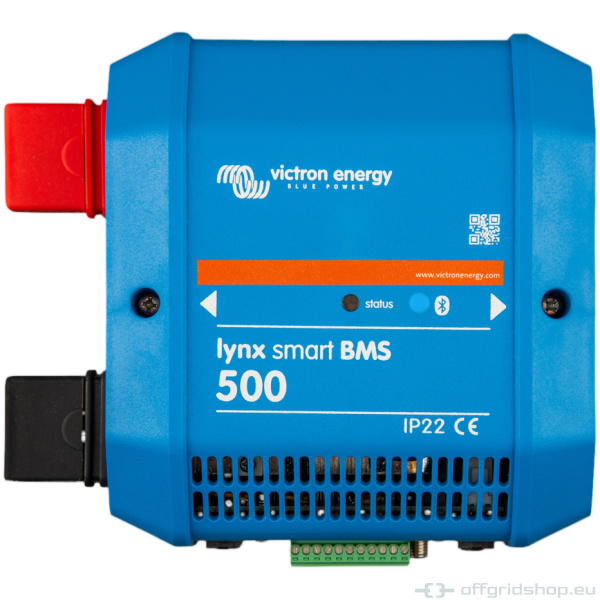

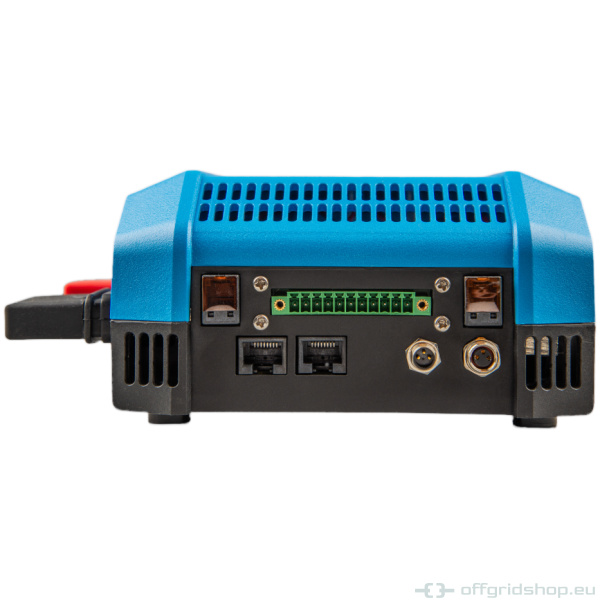

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. Its main features are:

  • Built-in 500A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
  • Battery monitor, indicating state of charge percentage and more data.
  • Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
  • Bluetooth for use with our VictronConnect App, for setup and monitoring.
  • Local and remote monitoring using a Victron GX device, for example the Cerbo GX.

The Lynx Smart BMS is part of the modular Lynx Distribution system.

Weightn.v.
Dimensionsn.v.
DatasheetLynx Smart BMS
ManualLynx Smart BMS (HTML5)
Lynx Smart BMS (PDF)
Enclosure dimensionLynx Smart BMS 500
Lynx Smart BMS 500 (3D)
Lynx Smart BMS 500 (stp)
System schematicCatamaran setup Quattro 5KW 230VAC 24VDC 600Ah Li Lynx Smart BMS & Distributors Cerbo GX touch generator MPPT Extra Alternators & WS500
Catamaran setup Quattro 5KW 230VAC 24VDC 600Ah Li Lynx Smart BMS & distributors Cerbo GX touch generator MPPT Extra Alternators & Alpha Pro III regulators
MultiPlus 3kW 120VAC 12VDC 600Ah Li Lynx Smart BMS & distributors Cerbo GX touch generator MPPT Orion-Tr Smart
MultiPlus 3kW 230VAC 12VDC 600Ah Li Lynx Smart BMS & distributors Cerbo GX touch generator MPPT Extra Alternator & WS500
MultiPlus 3kW 230VAC 12VDC 600Ah Li Lynx Smart BMS & distributors Cerbo GX touch generator MPPT Orion-Tr Smart
MultiPlus-II 3KW 230VAC 12VDC 600Ah Li Lynx Smart BMS & distributors Cerbo GX touch generator MPPT Orion Tr Smarts
MultiPlus-II 3kW 120VAC 12VDC 600Ah Li Lynx Smart BMS & distributors Cerbo GX touch generator MPPT Orion Tr Smarts
MultiPlus-II 3kW 230VAC 12VDC 400Ah Li Lynx Smart BMS Cerbo GX touch generator MPPT Orion-Tr Smarts
MultiPlus-II 3kW 230VAC 12VDC 600Ah Li Lynx Smart BMS & distributors Cerbo GX touch generator MPPT Extra Alternator & WS500
MultiPlus-II 3kW 2x120VAC 12VDC 400Ah Li Lynx Smart BMS Cerbo GX touch generator MPPT Orion-Tr Smart
Narrow Boat MultiPlus 3kW_12V_230V Lynx Smart BMS&Distributors Alternator WS500 MPPT SBP Orion-Tr Cerbo GX touch 50 Bow thruster Galvanic isolator
Quattro 5kW 230VAC 24VDC 600-800Ah Li Lynx Smart BMS & distributors Cerbo GX touch generator MPPT Orion-Tr Smart
CertificateDeclaration of Conformity - Lynx DC distribution
ISO9001 certificate
