BlueSolar PWM

ab UVP 14,40  ab 12,24

BlueSolar PWM

SKU: N/A Category:

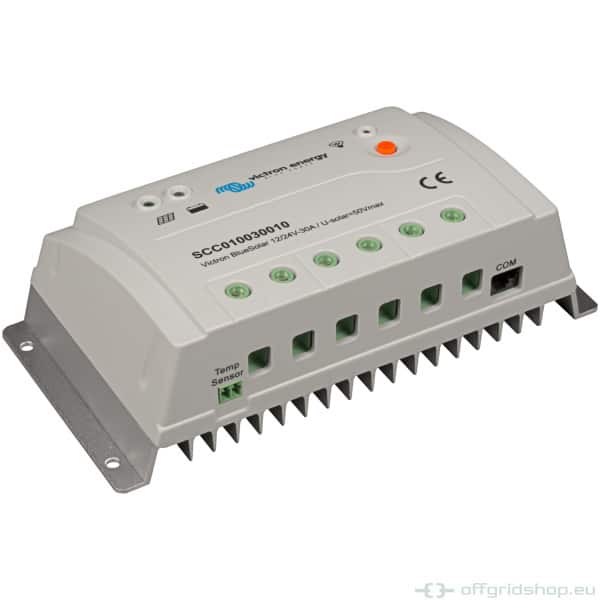

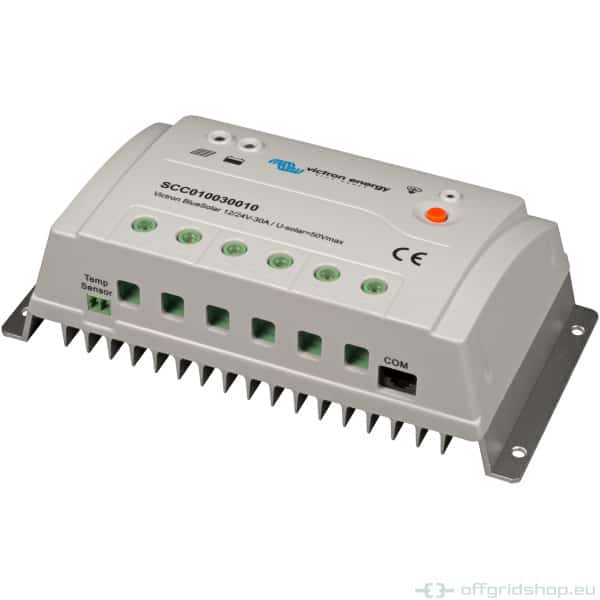

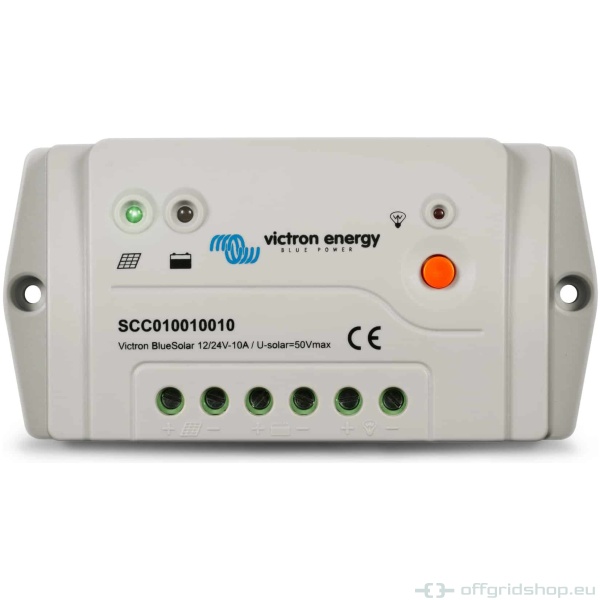

BlueSolar PWM-Pro

The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.
• Lighting control function, fully programmable.
• Three stage battery charging (bulk, absorption, float), fully programmable.
• Integrated battery monitor function (Remote Panel needed to display state of charge).
• Load output with low voltage disconnect and manual control (default setting).
• Optional external temperature sensor.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar panels and/or battery.
• Day/night timing options: see manual Remote Panel for details.

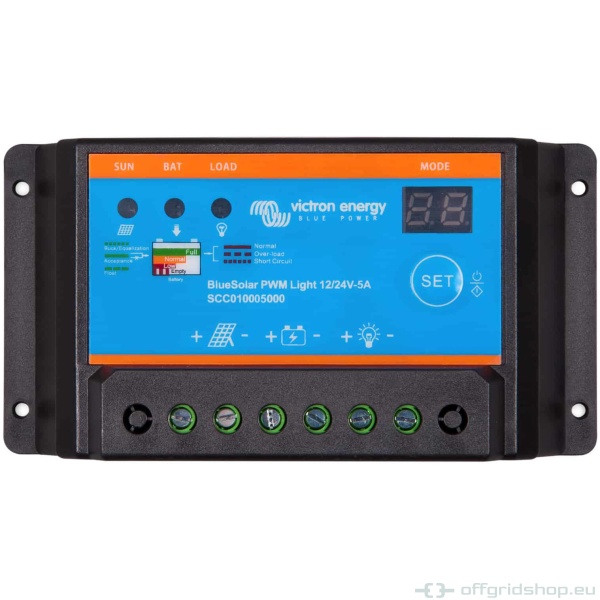

BlueSolar PWM-Light

• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.
• Day/night timing options: see manual for details

Weightn.v.
Dimensionsn.v.
Battery voltagen.v.
PV voltagen.v.
Charge currentn.v.
Powern.v.
AC input voltagen.v.
AC frequencyn.v.
Transfer switchn.v.
Bluetoothn.v.
Ingress protectionn.v.
Communicationn.v.
DatasheetBlueSolar PWM-Light 12/24V
BlueSolar PWM-Light 48V
BlueSolar PWM-Pro
ManualBlueSolar Charge Controller 12V 24V 10A with timer
BlueSolar Charge Controller PWM 12V 24V 20A
BlueSolar PWM-Light 12/24V
BlueSolar PWM-Light 48V
BlueSolar PWM-Pro
BlueSolar PWM-Pro setup and monitoring software

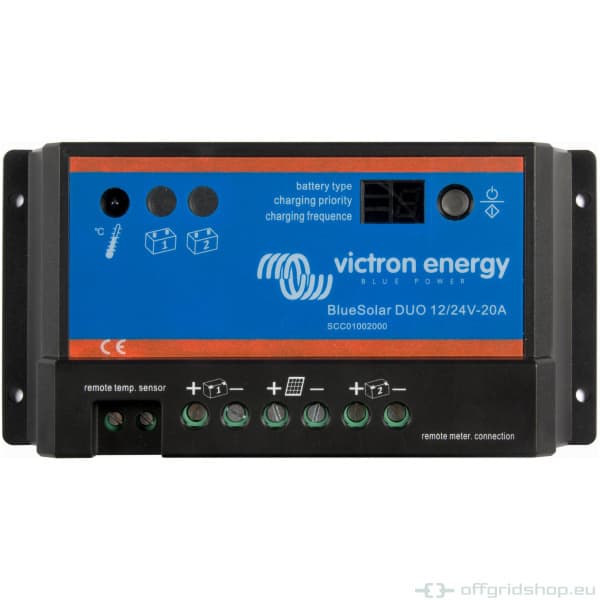

Meter for BlueSolar DUO 12/24V-20A
Remote Panel for BlueSolar PWM-Pro
Enclosure dimensionBlueSolar PWM-Pro Charge Controller 12/24V-20A
BlueSolar PWM-Pro Charge Controller 12/24V-30A
BlueSolar PWM-Pro Charge Controller 12/24V-5A 10A
Press releaseOceanvolt teams up with Victron Energy
Victron Energy helps customers to be less grid dependent
CertificateDeclaration of Conformity - BlueSolar PWM-Light and DUO Charge Controllers
Declaration of Conformity - BlueSolar PWM-Pro Charge Controllers
ISO9001 certificate
Technical informationWhich solar charge controller: PWM or MPPT?
